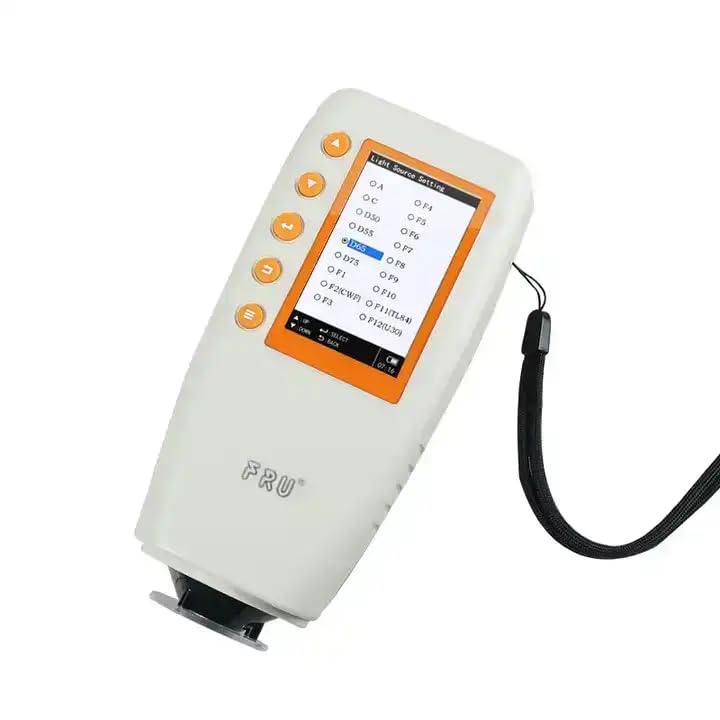

WN700D-8 Spectrophotometer Portable Spectrophotometer Measuring Caliber 8mm

ModelWN700D(Single Caliber)WN700S(Switchable Caliber)Geometric Conditionsd/8Color SpaceCIEL*a*b*,CIEL*C*h,YxyCIEL*a*b*,CIEL*C*h,CIEL*u*v*,Hunter LAB,CIEXYZ,Yxy,Reflectivity,CMYK,YI Yellowness,Ganz,ISO Brightness(R457 Whiteness),Taube Whiteness,z Whiteness,sRGBStandard Light SourceA,C,D50,D65,F2(CWF),F12(U30)A,C,D50,D55,D65,D75,F1,F2(CWF),F3,F4,F5,F6,F7,F8,F9,F10,F11(TL84),F12(U30)Light SourceCombined LEDColor Diff. FormulaIncremental E*ab,Incremental E*ChIncremental E*ab,Incremental E*Ch,Incremental E*uv,Incremental E*Hunter, Incremental E*cmc(2:1),Incremental E*cmc(1:1),Incremental E*94,Incremental E*00,Incremental E*sRGB, Incremental E*BFD,Incremental E*FMCIIMeasuring CaliberFacula 4mm(Caliber Φ6mm), Facula 8mm(Caliber Φ11mm),Facula 16mm(Caliber Φ16mm)Switchable: Facula 4mm(Caliber Φ6mm)& Facula 8mm(Caliber Φ11mm) Single: Facula 16mm(Caliber Φ16mm)SCI/SCESCISCI/SCESensor ArrayLine array CMOS@256 pixelsSpectral WayConcave diffraction gratingObserverCIE10°(1964),CIE2°(1931)Wavelength coverage400nm~700nmWavelength interval10nmMeasuring interval2.5 SecondReflectance range0%-200%Repeated accuracyIncremental E<0.07 (take the deviation average after 30 times measuring the whiteboard)Incremental E<0.05 (take the deviation averageafter 30 times measuring the whiteboard)Table DifferenceIncremental E<0.4(Measure the RAL 12-color blocks)Incremental E<0.3(Measure the RAL 12-color blocks)Light source lifeMore than 50,000 hoursBattery powerMeasuring more than 10000 timesDisplay screenTFT true color 2.8inch@(16:9)Data storage capacityStorage Standard 100 groups Sample 16,000 groupsOperating temperature0℃-40℃(32℉-104℉)Storage temperature-20℃-50℃(-4℉-122℉)Working humidityRelative humidity less than 85%,without condensationG.W1.5kgs1.5kgsSize of exterior package28*19*11cm28*19*11cmStandard accessoriesPower adapter, standard white board, standard black cavity, lithium battery, specification, PC softwareOptional accessoriesSoftware(Advanced Version), Micro printer, Locating block

• 1.Adopts advanced electronic circuit system and perfect optical system
• 2.High precision, good stability and strong anti-interference
• 3.Multi aperture design,large application
• 4. Rechargeable, high capacity lithium battery
